Description
D32mm Countersunk pot magnet with Epoxy coating details:

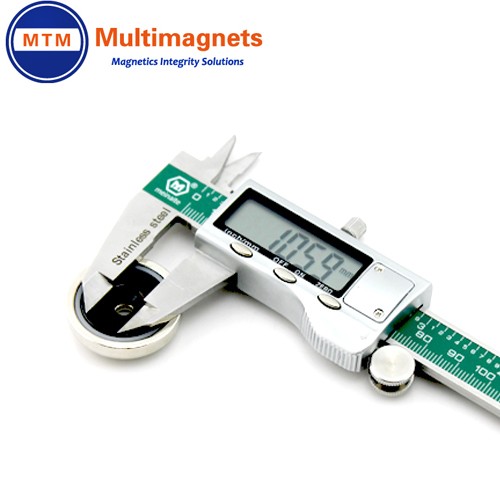

size: D32*8mm with M6 hole
Grade of neodymium magnet: N35
Coating: Ni-Cu-Ni for steel shell, Black epoxy for neodymium magnet
Pulling force of D32 countersunk pot magnet: 40-45kg
This countersunk pot magnet made with a high grade neodymium magnet with black epoxy coating, there is a screw or bolt mounting hole right in the middle. Due to the steel shell, they are ultra powerful single sided magnets that deliver an easy, non-destructive solution for you to mount or suspend ferrous objects to a wall or ceiling, or you can attach the magnet directly to your project.
Following is our sizes of standard pot magnets for your reference, custom is our advantage, pls be free to contact us if you don't find the right size you need.
note: all the strength of pot magnets is the vertical magnetic pull-force which make the magnet pull away from the 20mm thickness steel plate of a tensile tester under ideal condition. (80mm/min)
